Smeg+ iv2 wiring help

[paulo953]

Я знаю, но я не знаю, как получить доступ к нему только с сенсорным экраном! Нет кнопки, кроме громкости.

Механик Diagbox опубликовал «VF3 ?????????» как серийный номер на устройстве.

[iman]

@frog2050,



Hi Guys
I finally managed to install the SMEG+iv2 on citroen berlingo. it works fine but I realized I do not have FADE adjustment on the unit so there is no sound coming out of rear speakers. I also connected a diag to see if I can activate it.

there are some fact I have to share before:

- to code my VIN number on the unit I was not able to do that through SMEG+ menu on the diag every thing was deactivate and I could not do any changes. I tried it with RNEG2010 menu and it was functioned so I did VIN coding with RNEG2010.
- through SMEG+ on diag2000 Many parameters are reading but I do not have the possibility to change any thing. if I try to do it with RNEG2010 i can change the parameters but in last step when i want to save the changes i would encounter with the error: PROGRAMMING FAILED
- I have tested the rear speakers with actuator test option with my diag but when i actuate both front and rear speakers the test sound coming from just front speaker.

- the AUX also does not function which I guess is related to rear speakers

- I tried to change from  2 speaker to 4 speaker with RNEG2010 with diag but as I described in last step I have programming failed error.

- I also have 2 error stuck on telematics section while i do a global error check which is related to DAB antena and FM areal antena. that is fine because i do not have all 3 antenna connected and I have just 1 from my old RD4 redio unit. I am fine with that
the sound qualityis good and all equalizers function but it is dissapointing that i do not have rear speakers. do you have any idea what to do. the rear speakers worked on my old RD4.
Bluetooth and wifi also work fine but I have no Idea what is wifi option useful for! how can I take any advantage of wifi. I a, sure browsing and surfing was not the pupose of this option.

happy easter

cheers


[frog2050]

@iman, wifi setting http://www.c4-sedan.ru/forum/viewtopic.php?f=61&t=3349 Изменено 24 марта, 2018 пользователем frog2050

[Edsolo]

On 3/23/2018 at 8:15 PM, iman said:

@iman



Hi Guys
I finally managed to install the SMEG+iv2 on citroen berlingo. it works fine but I realized I do not have FADE adjustment on the unit so there is no sound coming out of rear speakers. I also connected a diag to see if I can activate it.

there are some fact I have to share before:

- to code my VIN number on the unit I was not able to do that through SMEG+ menu on the diag every thing was deactivate and I could not do any changes. I tried it with RNEG2010 menu and it was functioned so I did VIN coding with RNEG2010.
- through SMEG+ on diag2000 Many parameters are reading but I do not have the possibility to change any thing. if I try to do it with RNEG2010 i can change the parameters but in last step when i want to save the changes i would encounter with the error: PROGRAMMING FAILED
- I have tested the rear speakers with actuator test option with my diag but when i actuate both front and rear speakers the test sound coming from just front speaker.

- the AUX also does not function which I guess is related to rear speakers

- I tried to change from  2 speaker to 4 speaker with RNEG2010 with diag but as I described in last step I have programming failed error.

- I also have 2 error stuck on telematics section while i do a global error check which is related to DAB antena and FM areal antena. that is fine because i do not have all 3 antenna connected and I have just 1 from my old RD4 redio unit. I am fine with that
the sound qualityis good and all equalizers function but it is dissapointing that i do not have rear speakers. do you have any idea what to do. the rear speakers worked on my old RD4.
Bluetooth and wifi also work fine but I have no Idea what is wifi option useful for! how can I take any advantage of wifi. I a, sure browsing and surfing was not the pupose of this option.

happy easter

cheers


Hello everyone, what a great forum. This will be very helpful

Iman can you confirm what steps you took to get the smeg+iv2 to work in your berlingo please.

Did failing to remove pin 15 cause any issues?



Thank you for your time

Ed

[frog2050]

Если 15 контакт на месте и была до SMEG установлена RD5 или RD4, то требуется ремонт платы конектора SMEG (выгорает перемычка).



[Edsolo]

Thank you @frog2050for your reply and knowledge.

Is it a simple case of soldering in a short wire to replace the jumper?

[frog2050]

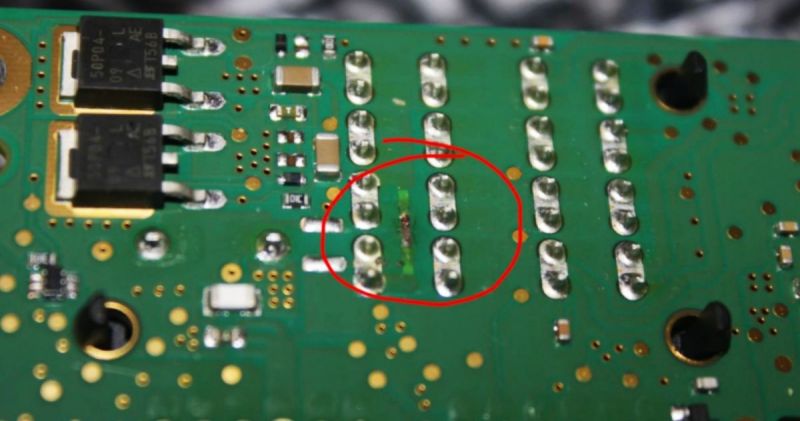

Фото не моё, но надеюсь хозяин фото не будет против

[Edsolo]

Thank you @frog2050

I have opened my unit up it has blown as shown in your picture.

Do I simply solder a little wire across the two pins to replace the jumper?



[frog2050]

Достаточно запаять тонкий проводок, как предохранитель использовать перемычку.



[Edsolo]

Thank you again for your help. I've fixed the unit but now having looked again I don't have pins 9, 14, 11 on my cars connector.

Are they available elsewhere or will it simply be game over for me?

[Edsolo]

Thank you again for your help. I've fixed the unit but now having looked again I don't have pins 9, 14, 11 on my cars connector.

Are they available elsewhere or will it simply be game over for me?

[Edsolo]

Thank you again for your help. I've fixed the unit but now having looked again I don't have pins 9, 14, 11 on my cars connector.

Are they available elsewhere or will it simply be game over for me?

[frog2050]

Это кабель для питания экрана 4 пина.

Если самостоятельно устанавливаете в машину SMEG  вместо RD5  или RD4 , то надо самому сделать кабель питания экрана и он будет подключатся на 9, 11, 14, 15 контакты и в дисплей.

[Edsolo]

Thank you @frog2050. I have got it working.
Do you know which pins the Menu and volume buttons on the top of the unit need to go?

Also do you have a pin out diagram for the USB cable?

благодарю вас

[Edsolo]

Good evening. Been playing with the smeg+ iv2 and I'm getting an error

BSI fault

No connection with audio ecu



Its causing my service spanner to show on the dashboard.

[frog2050]

Возможно не укана правильно модель телематики в BSI ?

[frog2050]

В 14.04.2019 в 20:21, Edsolo сказал:

No connection with audio ecu



Its causing my service spanner to show on the dashboard.

Возможно блок SMEG_IV2 имеет CAN2010 , а автомобиль имеет CAN2004.

Может быть в этом дело ?

[Edsolo]

Thank you @frog2050 for all your help and replies. I have finally finished installing the smeg+ iv2.
I still have the service spanner next to the odometer but thats no problem.

I have however worked out where the three buttons MENU, Volume -, Volume + are wired. The uploaded diagram will help to install it. Hopefully it will help someone else who stumbles across this great forum.

Thank you again.


[skakavac111]

hello

i have smeg iv2 for Peugeot Partner and it works ok with this connetcting sheme. but i have one problem my bluetooth dont work. i have instaled microphone in roof , but when i answer the phone nobody hears me.

[frog2050]

А вы проверяли - есть провода, от разъёма SMEG(пин 3 и 9), до микрофона на крыше ?

Провод от микрофона до блока SMEG состоит из 3 кусков, один у микрофона до стойки, второй от стойки до торпеды и третий от торпеды до самого блока.
Любой из этих участков, может отсутствовать.

[skakavac111]

On 12/8/2017 at 7:17 PM, paulo953 said:



я не проверял эти провода. означает провода от микрофона к 16-контактному разъему. они могут вытянуть новые провода от микрофона в радио. какие контакты я использую. спасибо.

В 11/19/2019 в 5:01 PM, frog2050 сказал:

Have you checked - are there wires from the SMEG connector (pin 3 and 9) to the microphone on the roof?

The wire from the microphone to the SMEG unit consists of 3 pieces, one from the microphone to the rack, the second from the rack to the torpedo and the third from the torpedo to the unit itself.
Any of these sites may be missing.

я не проверял эти провода. означает провода от микрофона к 16-контактному разъему. они могут вытянуть новые провода от микрофона в радио. какие контакты я использую. спасибо.



[frog2050]

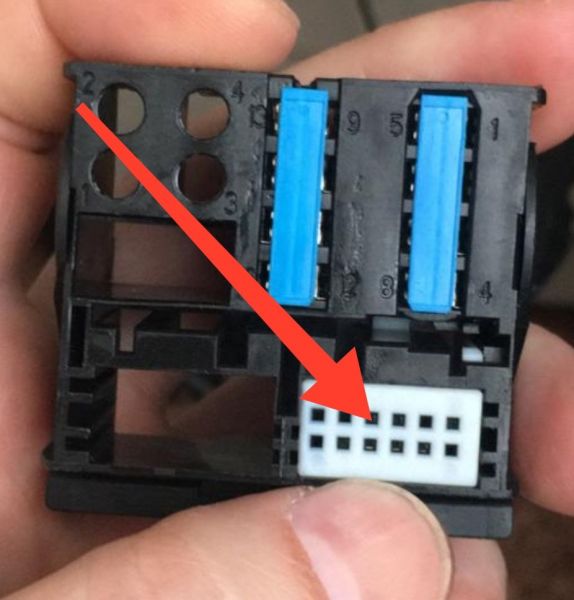

Используется этот разъём , контакты 3(-, GND) и 9(+, Signal), это микрофон.



[skakavac111]

48 минут назад, frog2050 сказал:

Используется этот разъём , контакты 3(-, GND) и 9(+, Signal), это микрофон.





спасибо

[Toxa5]

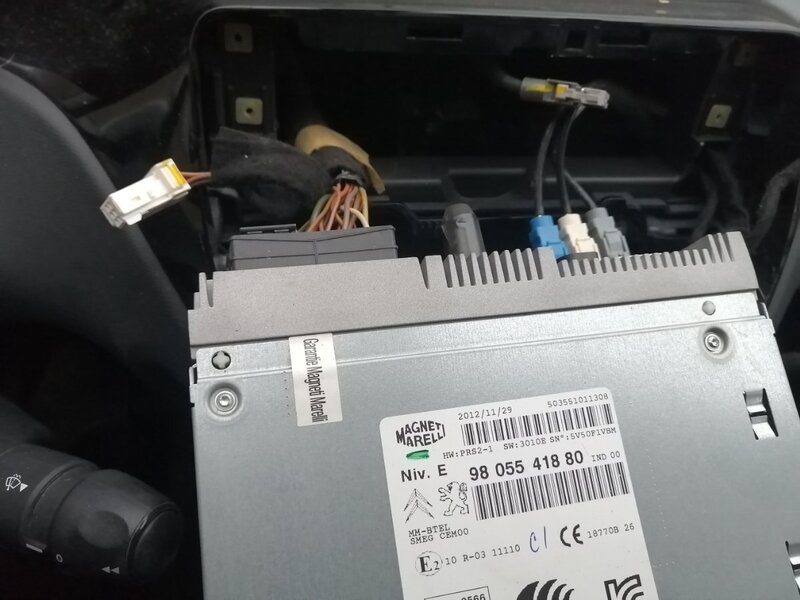

Приветствую, не могли бы соорентировать по подключению для проверки на столе SMEG 3.17, вне авто.

[Toxa5]

И если легла sd card, я просто чистую отформатированную ставлю, накатываю с USB прошивку и дальше конфигурирую? Или что то упустил?
